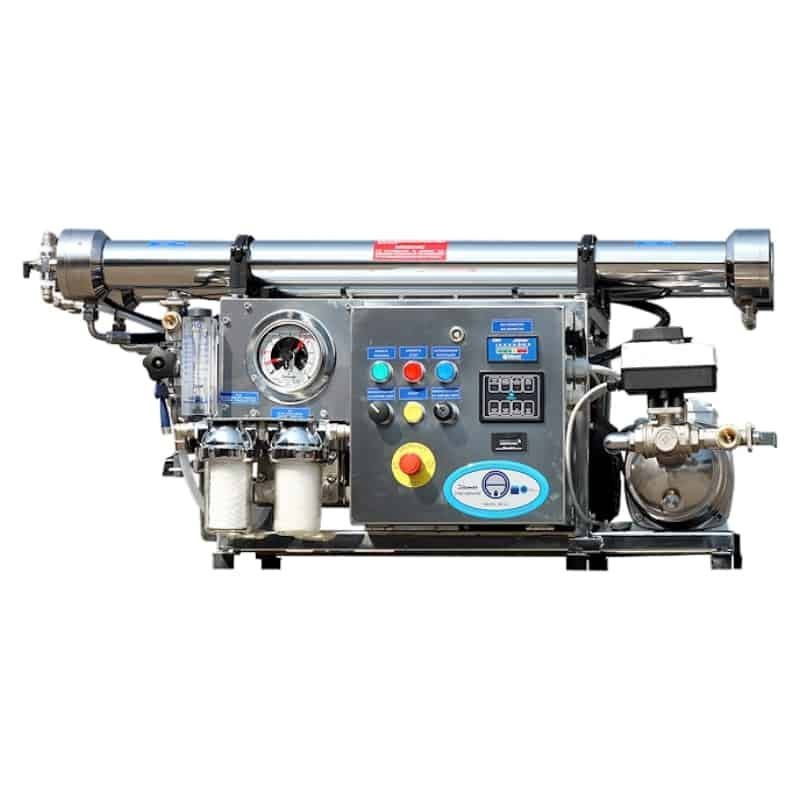

MC3J Horizontal Watermaker- Idromar

The Idromar MC3J Horizontal Watermaker, part of the MINI COMPACT series, is specifically designed to provide efficient fresh water production for small and medium-sized vessels from 15 to 25 meters, where continuous or intensive operation is not always required.

Using advanced reverse osmosis technology, this marine desalination system converts seawater into fresh potable water, improving onboard autonomy while reducing reliance on dockside water supplies.

All components are manufactured from AISI316L stainless steel, ensuring excellent resistance to corrosion in harsh marine environments and long-lasting reliability. Its smart and compact design allows for easy installation, either as a single compact unit or with its 3 components installed separately, making it ideal for vessels with space limitations.

The MC3J Horizontal model delivers a fresh water production capacity of 180 liters per hour at 25°C, reaching up to 4,300 liters per day, with produced water salinity of approximately 400 ppm.

Technical Specifications:
• Fresh water production per hour (at 25°C): 180 l/h
• Daily production (at 25°C): 4,300 liters
• Produced water salinity: 400 ppm
• Power consumption: 1.5 kW
• Weight: 100 kg
• Dimensions*: 790 x 450 x 380 mm
• Seawater intake: 3/4"
• Auto-flush water intake: 3/4"
• Overboard discharge: 3/4"
• Fresh water outlet: 1/2"

*Dimensions do not include the membrane.

Key Benefits:
✔ AISI316L stainless steel construction for outstanding corrosion resistance
✔ Ideal for 15–25 meter vessels
✔ Reliable onboard fresh water production
✔ Flexible installation: compact or modular setup
✔ Low power consumption
✔ Optional auto-flushing system for simplified maintenance and extended system lifespan
