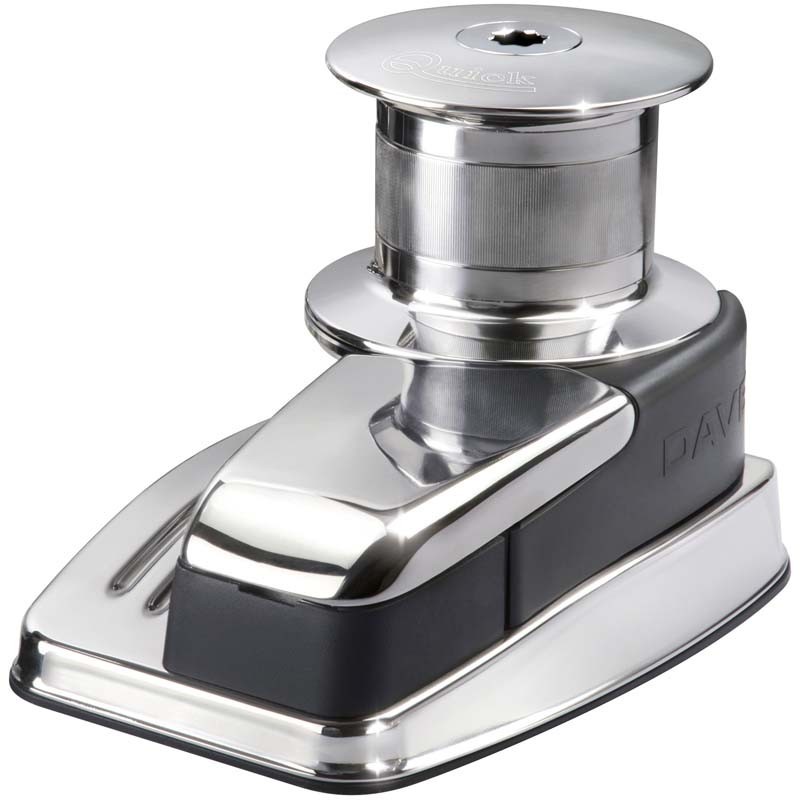

The Quick DAVE DV3024DY 3000W 24V left-hand windlass with drum is designed for boats from 20 to 24 meters. Compatible with 10, 12, and 14 mm DIN766 chain, built in AISI316 stainless steel and hard anodized aluminum for maximum durability and reliable anchoring performance.
The Quick DAVE DV3024DY 3000W 24V left-hand windlass with drum is engineered for large vessels requiring a powerful, safe, and heavy-duty anchoring solution.
This model features the chain pipe positioned on the left side (looking from stern to bow) and is powered by a high-performance 3000W 24V motor, delivering exceptional performance even under demanding workloads.
Its robust construction combines AISI316 stainless steel with hard anodized aluminum, providing excellent corrosion resistance and long-lasting durability in harsh marine environments.
Designed to work with chain or rope + chain using a single gypsy, the integrated rope guide ensures smooth and reliable anchoring operations.
The unit is also equipped with a magnet and sensor for chain counter installation, allowing precise chain monitoring during anchoring.
• Left-hand chain pipe (viewed stern to bow)
• Power: 3000W
• Voltage: 24V
• Available with or without drum
• Compatible with 10, 12, and 14 mm DIN766 chain (specify required size when ordering)
• Manual free-fall anchor release system
• Mechanical safety brake
• Chain pipe inspection cover for easy maintenance
• IP66 waterproof motor
• Anodized aluminum gearbox
• Includes relay box and stainless steel handle
• Maximum pull load: 3100 kg
• Maximum working load: 1200 kg
• Recommended working load: 400 kg
• Current draw under working load: 145A
• Maximum retrieval speed: 39.2 m/min
• Retrieval speed under working load: 19.3 m/min
• Weight with drum: 64.7 kg
• Recommended boat length: 20–24 meters
The Quick DAVE DV3024DY is a premium anchoring solution for boat owners seeking maximum power, safety, and durability.
