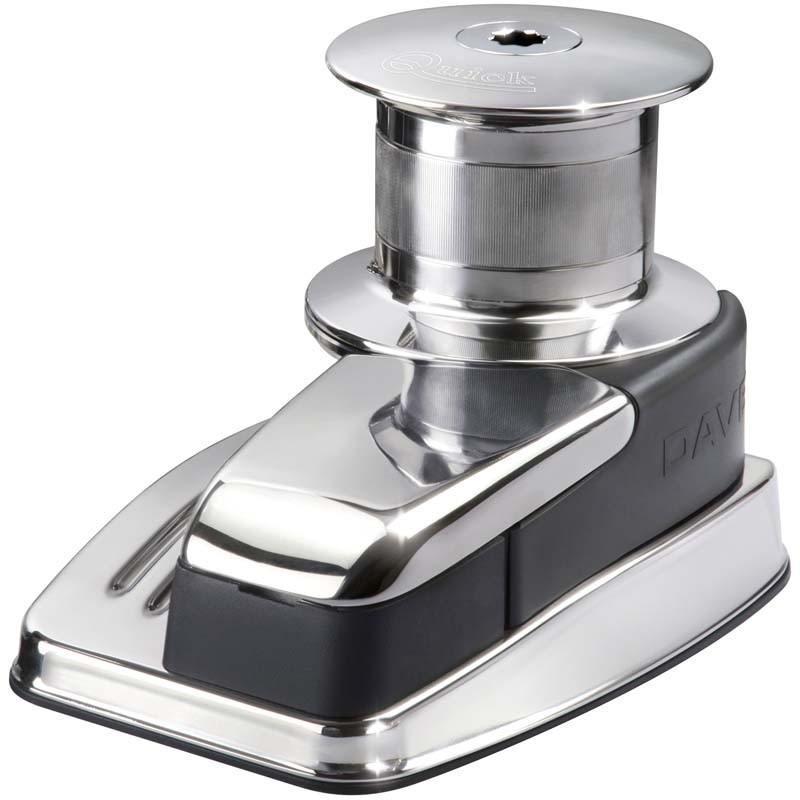

Windlass DAVE DV2324DY 2300W 24V LEFT DRUM- Quick

The Quick DAVE DV2324DY 2300W 24V left-hand windlass with drum is engineered for larger vessels requiring a powerful, reliable, and heavy-duty anchoring system for demanding marine environments.

This model features the chain pipe positioned on the left side (looking from stern to bow) and is powered by a 2300W 24V motor, delivering an excellent balance of power, retrieval speed, and safety during anchoring operations.

Built from AISI316 stainless steel and hard anodized aluminum, it offers exceptional corrosion resistance and long-lasting durability in harsh marine conditions.

The system is designed to operate with chain or rope + chain using a single gypsy, thanks to its integrated rope guide, ensuring smooth and efficient anchoring performance.

It also includes a magnet and sensor for chain counter installation, enabling accurate chain monitoring during anchoring (chain counter not included).

Key Features:

• Left-hand chain pipe (viewed stern to bow)
• Power: 2300W
• Voltage: 24V
• Available with or without drum
• Compatible with 10, 12, and 14 mm DIN766 chain (specify required size when ordering)
• Manual free-fall anchor release system
• Mechanical safety brake
• Chain pipe inspection cover for easy maintenance
• IP66 waterproof motor
• Anodized aluminum gearbox
• Includes relay box and stainless steel handle

Performance:

• Maximum pull load: 2400 kg
• Maximum working load: 850 kg
• Recommended working load: 285 kg
• Current draw under working load: 120A
• Maximum retrieval speed: 29.9 m/min
• Retrieval speed under working load: 23.3 m/min
• Weight with drum: 54.4 kg
• Recommended boat length: 20–24 meters

The Quick DAVE DV2324DY is an ideal choice for boat owners seeking a powerful, durable, and dependable windlass for safe and efficient anchoring operations.
