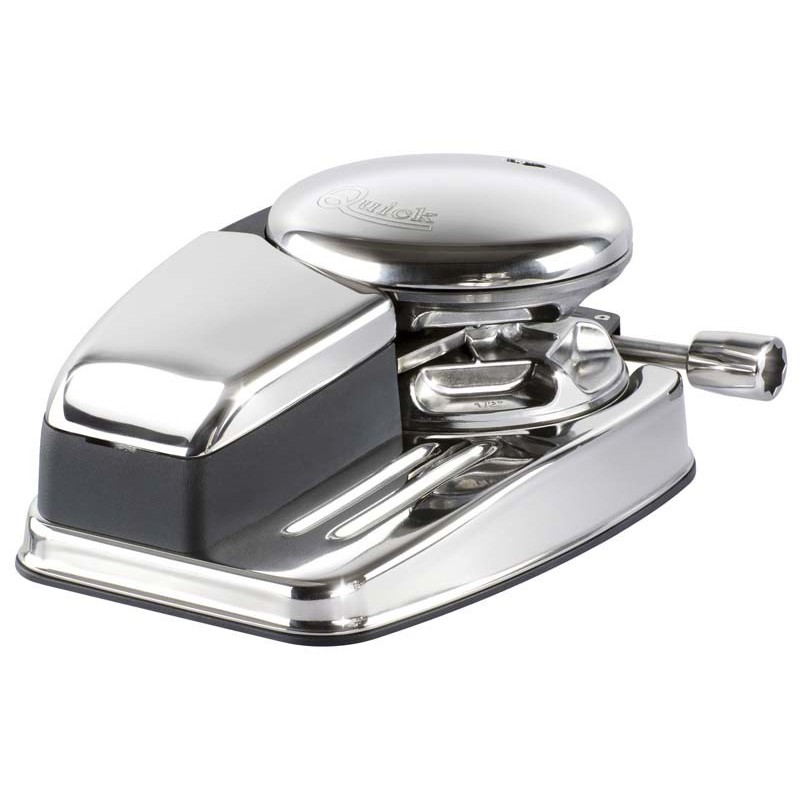

Windlass DAVE DV5 X 2300W 24V DCH 10 MM- Quick

The Quick DAVE DV5 X 2300W 24V right-hand windlass without drum is engineered for larger vessels requiring a powerful, robust, and heavy-duty anchoring solution for demanding marine conditions.

This model features the chain pipe positioned on the right side (looking from stern to bow) and is powered by a 2300W 24V motor, delivering outstanding anchoring performance even under demanding loads.

Its durable construction combines AISI316 stainless steel with hard anodized aluminum, ensuring superior corrosion resistance and long-term durability in harsh marine environments.

Designed to operate with chain or rope + chain using a single gypsy, the integrated rope guide ensures smooth, efficient, and reliable anchoring operations.

The windlass is also equipped with a magnet and sensor for chain counter installation, allowing precise chain monitoring during anchoring (chain counter not included).

Key Features:

• Right-hand chain pipe (viewed stern to bow)
• Power: 2300W
• Voltage: 24V
• Drumless version
• Compatible with 10 mm DIN766 chain (other chain sizes available upon request)
• Manual free-fall anchor release system
• Mechanical safety brake
• Chain pipe inspection cover for easy maintenance
• IP66 waterproof motor
• Anodized aluminum gearbox
• Includes relay box and stainless steel handle

Performance:

• Maximum pull load: 2400 kg
• Maximum working load: 850 kg
• Recommended working load: 285 kg
• Current draw under working load: 120A
• Maximum retrieval speed: 29.9 m/min
• Retrieval speed under working load: 23.3 m/min
• Weight without drum: 51 kg
• Recommended boat length: 20–24 meters

The Quick DAVE DV5 X 2300W 24V is a premium anchoring solution for boat owners seeking a powerful, reliable, and durable windlass for safe and efficient anchoring operations.
