HELIX 7 CHIRP MSI GPS G4 -HUMMINBIRD

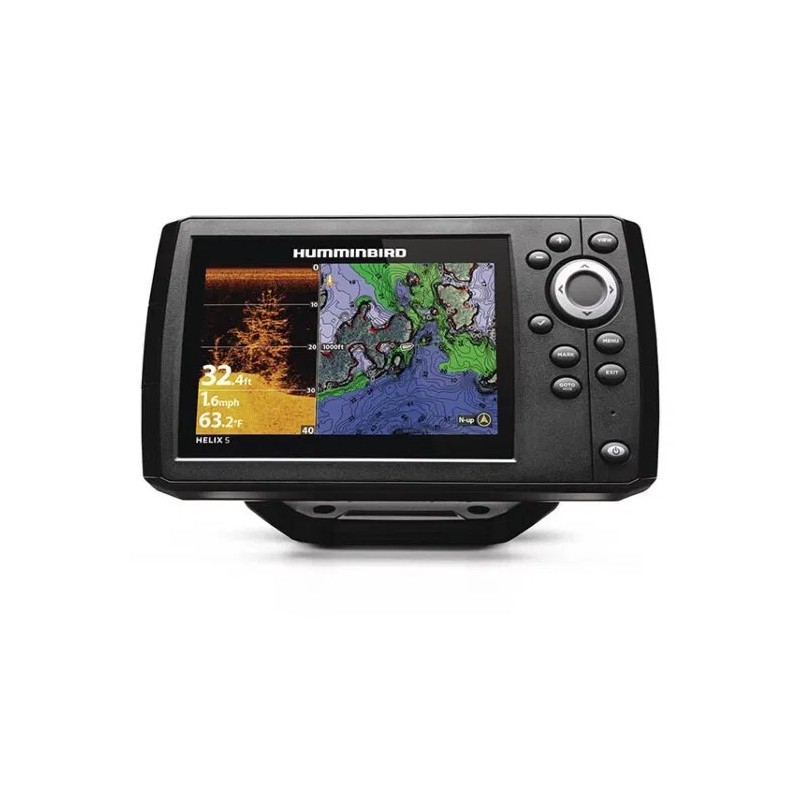

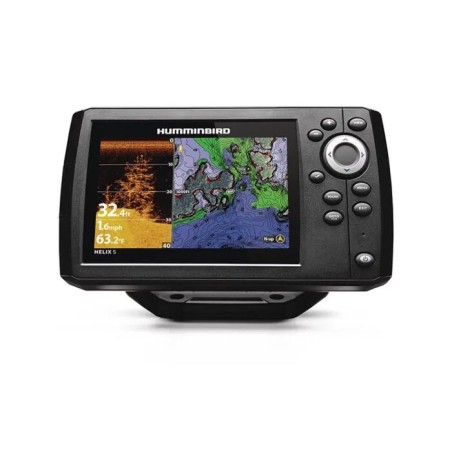

HELIX 7 CHIRP MSI GPS G4 – Humminbird

The HELIX 7 CHIRP MSI GPS G4 from Humminbird is a next-generation fish finder designed for demanding anglers. Its panoramic 7” high-resolution display (1024H x 600V) offers a clear and precise view of the seabed, the sides of your boat, and the surrounding environment.

Equipped with Dual Spectrum CHIRP, MEGA Down Imaging, and MEGA Side Imaging, it delivers detailed vertical and side-scanning images—covering up to 400 feet side-to-side (455 kHz) or 250 feet with MEGA SI, and 75 feet in depth with MEGA Down Imaging.

With built-in GPS and mapping, you can create routes, mark waypoints, and navigate confidently. Compatible with Navionics®, LakeMaster®, and CoastMaster®, this unit also supports software updates and sonar recordings.

🔧 Key Technical Specifications:

• Item Number: 411620-1

• Series: HELIX

• Display: 7" color TFT, 1024H x 600V

• Standard Sonar: Dual Spectrum CHIRP, MEGA DI, MEGA SI

• Supported Sonar Frequencies: 50/83/200/455/800 kHz and 1.2 MHz

• Max Sonar Depth: 1,200 ft (with included transducer), 3,500 ft (with optional 50 kHz)

• MEGA Imaging Depth: 75 ft

• MEGA Side Imaging Range: Up to 250 ft per side (500 ft total)

• 455 kHz Side Imaging Range: Up to 400 ft (200 ft per side)

• GPS & Chartplotting: Yes

• MicroSD Slot: 1

• Included Transducer: XNT 9 HW MSI 150 T

• Output Power (RMS): 500 W (4000 W PTP)

• Power Consumption: 800 mA

• Mounting: Gimbal included

• Compatible With: AIS, autopilot, Minn Kota US2, built-in MEGA DI

• Software Upgradable: Yes

• Temperature & Speed Sensors: Included

• Display Colors: Full color, 16-bit grayscale

• Standard Mount Size: 10.54” W x 5.8” H x 3.68” D

• Power Input: 10.8–20 VDC

• UPC: 0082324056161

🎯 Perfect for both professional and recreational anglers who need total visibility of the underwater environment and pinpoint fish detection.

📦 Available now at MD Island Supply. Inquiries and orders online or via WhatsApp.
