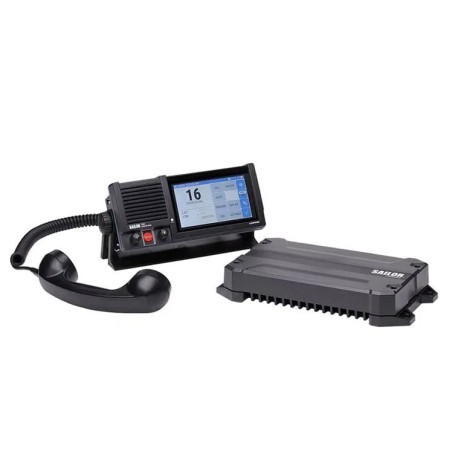

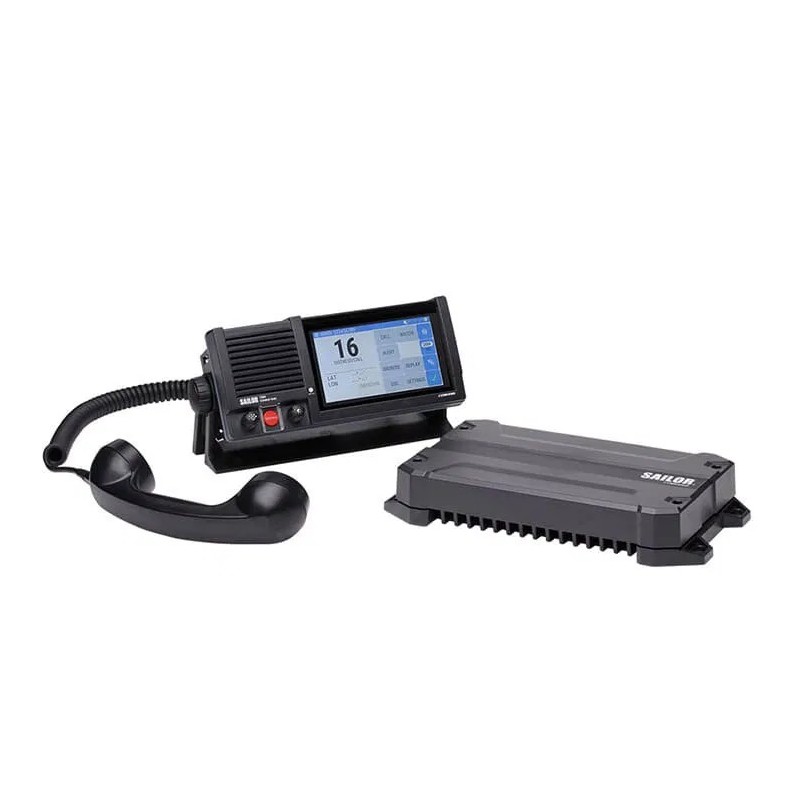

DSC-SAILOR 7222 Class A Fixed VHF Radio
€2,596.40
€2,466.58
Save 5%
Tax excluded
Delivery within 1-2 business days
REF.407222A-00500
Highly rugged and easy to operate in any situation, the SAILOR 7222 VHF DSC Class A is the most advanced SAILOR radio for demanding users operating in the marine environment. As a next-generation solution at the forefront of radio technology, it delivers new performance that enhances safety and operational communication.
TECHNICAL SPECIFICATIONS
Weight: 1.5 kg
Dimensions (H x W x D): 161 x 306 x 51 mm
Operating Temperatures: -15°C to +55°C
Storage Temperatures: -25°C to +70°C
Ingress Protection: IPX2
Power Supply: 24 VDC +30%/-10
Power Consumption: Rx (Operating): 8 W
(typical) Tx (Operating): 65 W
Tx (Operating): 18 W
Heat Dissipation: Rx (Operating): 8 W
(typical) Tx (Operating): 40 W
Tx (Operating): 17 W
Anterior Input/Output Rx/Tx 50 ohm @ Tx voice/Tc DSC and Rx voice
Anterior input DSC 50 ohm @ Rx DSC
LAN: 2 Category 6 STP LAN ports
Voice Frequency Range: 156.000 MHz - 164.000 MHz
DSC: 156.525 MHz
Channel Spacing: 25 kHz, all international maritime channels
Number of Channels: The radio can be programmed with up to 100
private channels on all channels
Modulation: 16K0G3E, 16KOG2B (DSC)
TRANSMITTER
RF Output Power: High: 25 W +0 dB / -1.5 dB; Low: 1 W +0 dB / -1.5 dB
Frequency Error: +/- 3ppm
RECEIVER @ VOICE
Sensitivity: < -119 dBm typically @ 20 dB SINAD
LF Power: Built-in Speaker: 6 W (at 5 kHz deviation/1 kHz tone)
External speaker: 6 W / 8 Ohm
RECEIVER @ DSC
Sensitivity: -117 dB
240911
