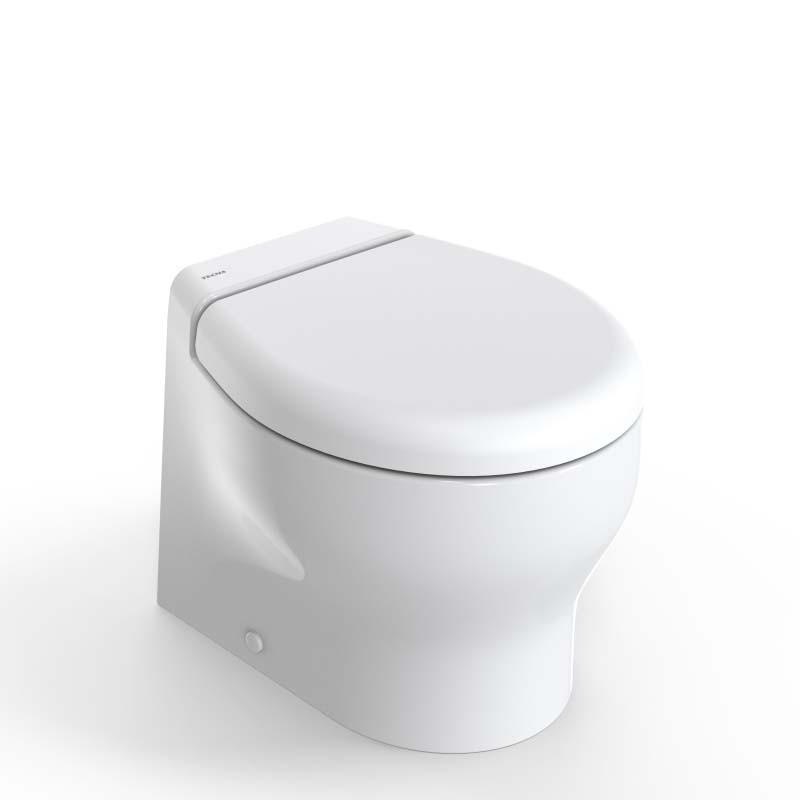

ELEGANCE 2G 24V- Tecma

The Tecma Elegance 2G 24V is an electric marine toilet designed for yachts between 50 and 100 feet (15–30 meters), offering maximum flexibility, comfort and design consistency across all onboard bathrooms.

The Elegance 2G Short version is specifically designed for installation on a raised step, typically around 10 cm (3.9 in). Its ceramic housing height is reduced to 36 cm (14.2 in) to maintain a standard seat height of 46 cm (18.1 in). Installing the toilet on a higher waterline improves space efficiency and maximizes usable volume around the installation area.

Two installation configurations are available for the Elegance 2G Short, allowing designers to select the best solution for each space without compromising Tecma’s proven performance and quality.

Installation options

Floor-mounted (above floor)
The short floor-mounted version reduces shipyard labor by eliminating the need for floor cut-outs to accommodate the discharge motor and hoses. All Tecma components are optimized to make the best use of the available internal space.

Through-floor installation
This configuration requires a floor cut-out to house the motor and hoses but provides increased bowl depth, offering enhanced comfort and space for the end user.

Key Features

• Recommended for yachts 50–100 ft (15–30 m)

• Electric marine toilet with optimized short profile

• Flexible installation: above floor or through floor

• Space-efficient design for raised installations

• Consistent Tecma technology and quality across all bathrooms

• Suitable for VIP, guest and crew bathrooms

Technical Specifications

• Water consumption: 0.5 – 2.7 L per flush

• Color: White (custom colors available on request)

• Seat and lid options:

  • Polyester coated wood

  • Polyester coated wood with soft-close (white or black)

  • Thermoset seat with or without soft-close (white / bone)

• Discharge pump: MAC 11 (12/24V)

  • Optional: MAC 11 110/230V

• Inlet system: Solenoid valve

  • Optional inlet pump

• Standard control panel: SFT All-in-One

• Optional panels: Multiframe SFT / Touch SFT multifunction

The Elegance 2G range allows designers to select the ideal sanitary solution for every onboard space, from bow to stern, while maintaining the same high standards of technology, comfort and quality throughout the yacht.
