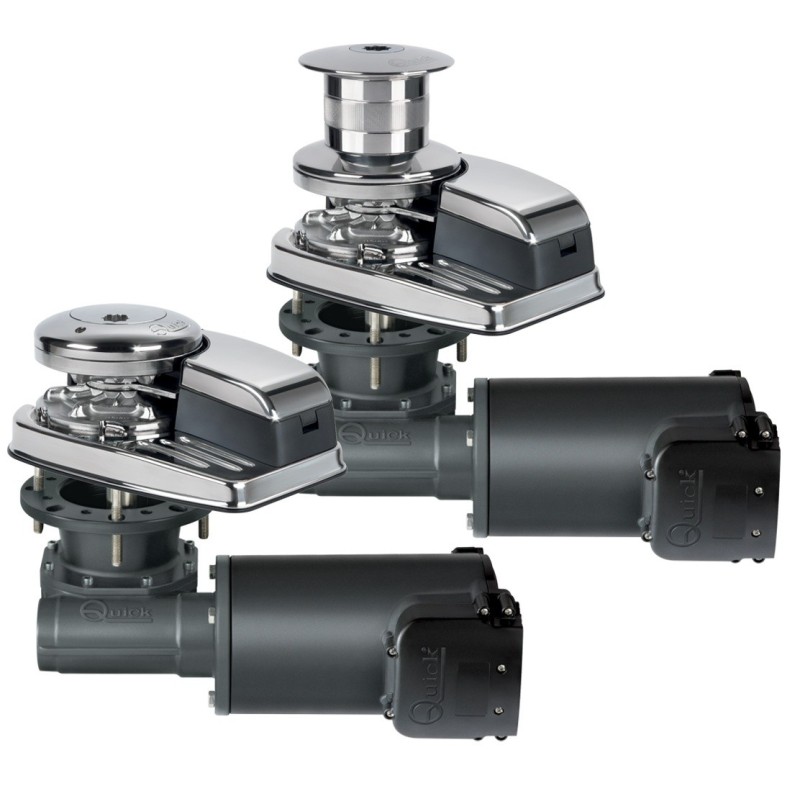

Dylan DR4-Quick Windlass
€2,332.50
€2,145.90
Save 8%
Tax excluded
Delivery within 1-2 business days
Vertical Windlasses
AISI 316 stainless steel base and hard oxide anodized aluminum
With and without drum
Cable and chain in a single gibbet
Integrated sensor and magnet for chain counter
Manual free fall system
Manual emergency lifting system
Supplied with pressure lever
Inspection cover
IP67 sealed motor (1500-1700 W)
IP66 sealed motor (2000 W)
Anodized aluminum gearbox
Standard equipment: Includes relay box and aluminum handle.
• Supports 10 and 12 mm DIN 766 chain. The 1500W models come with a 10 mm sheave installed.
• If you require a different sheave than the one equipped as standard, please let us know when placing your order.
• Maximum starting load: 1100 kg; Maximum working load: 400 kg; Working load: 135 kg;
Power consumption with working load: 150 A; Maximum retraction speed: 35.2 m/min;
Retraction speed with working load: 19 m/min;
Weight without drum: 23.7 kg; Boat length: 10-16 m.
240751
